EASY HUBS

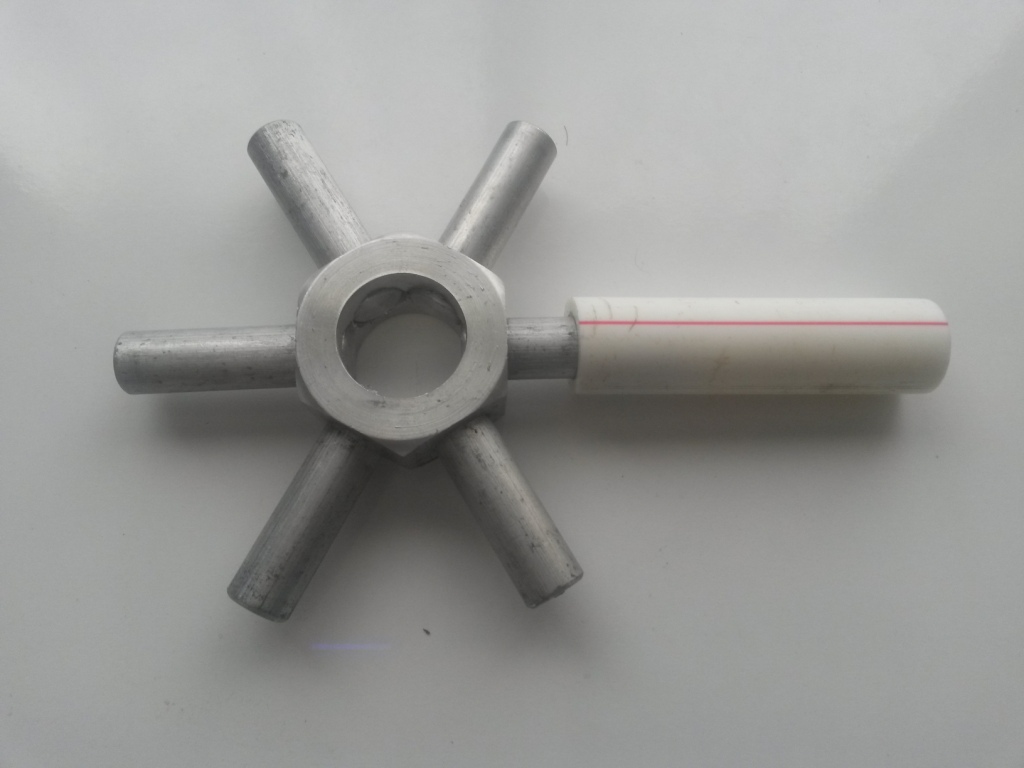

Aluminium geodesic dome hubs for plastic pipe struts.
Design and construct your own geodesic dome project easily.

  • App
  • App
  • App
EASY FIXING

You don't need any tool for the installation. Just fit in the pipe to the hub finger. Thats it. No need screw or pin.

STRUT SIZE & MATERIAL

The hubs designed for PPRC water pipes with 20mm outer diameter and 13,2mm inner diameter. There is small differences between different brand pipes. You must check the inner diameter of the pipes by using hub itself.  Hub diameter is 4cm.
Strut lengths should be between 50cm and 100cm.

CURVED STRUTS

PPRC pipes are elastic. So they will be curved itself with the radius of the dome after installation.

LOCK SYSTEM

There is no screw or a pin to fix the struts to the hub. Curved struts have a tension at the tips so there is enough friction load between aluminium finger and plastic pipe. The dome locks itself.  On the other hand cover textile is also hug the struts and do not let them realese from the hubs. If there is a necessity about extra safe lock system, may be some ropes can be use between some hubs.

EASY HUBS

If you know how many hubs that you will need, you can purchase hubs by quantity.
Prices of all hub types are the same. Hub types are :
  6 way hub
  5 way hub
  4 way hub
We can also supply the PPRC pipes with the proper lengths. Please ask for the details.

ASK FOR SHIPPING COST
WE CAN SHIP MOST place OF THE world
PRICE OF ALL HUB TYPES IS
€7,5

Per Hub

Email for Purchase

Contact Us for
shipping details

2V DOME SET

2V dome set includes:
  10 pieces 4 way hubs
    6 pieces 5 way hubs
  10 pieces 6 way hubs
You can use different strut lengths according to your dome size. We can also supply the PPRC pipes with the proper lengths. The price does not include the pipes.

ASK FOR SHIPPING COST
WE CAN SHIP MOST PLACE OF THE WORLD
PRICE OF A 2V DOME SET IS
€195

Per set

Email for Purchase

Contact Us for
shipping details

3V DOME SET

3V dome set includes:
  15 pieces 4 way hubs
    6 pieces 5 way hubs
  40 pieces 6 way hubs
You can use different strut lengths according to your dome size. We can also supply the PPRC pipes with the proper lengths.  The price does not include the pipes.

ASK FOR SHIPPING COST
WE CAN SHIP MOST PLACE OF THE WORLD
PRICE OF A 3V DOME SET IS
€455

Per Set

Email for Purchase

Contact Us for
shipping details
